Electric travel guitar
Lapaxe™ Deluxe Classic
Recommenced Tuning: Minor Third Up.
Total length : 52cm
Scale length : 46.5cm
Weight: 1650 grams.
Body : Single piece block of Mahogany. Fretboard: Indonesian Rosewood or Hard Maple.
Neck-Through construction.
Reinforced neck with two carbon steel rods and a double-action truss rod at the centre.
Bell Brass Hardware (Bridge and Nut) is available in Brass / Black Chrome and Chrome.
Jim Dunlop Straplock system.
Volume and Tone control fitted with our Bell Brass knobs.
3 way Les Paul type Toggle switch.
Potential Meters: 500K - A. - Brass Type.
End pin Jack Strap Retainer at back- screwed in type.
Lapaxe™ Free-Bird Hot-Rail Humbuckers
Tuning: Standard
Length: 62 cm
- Scale Length: 56 cm
- Weight: +/- 1850 grams
- Nut Width: 4 cm
- Body: One-piece Mahogany
- Neck: Quarter sawn Mahogany or Maple Bolt on.
Fretboard: Rosewood or Hard maple.
- Hardware: Solid Bell Brass in variations: Brass, Chrome, Black Chromed
Pickups: Double Hot-Rail Humbuckers
Volume and tone control.
500K-A brass potentiometers.
3 on and off mini toggle switches one for each pickup.
Stainless steel pickguard in mirror finish or matte black plated.
Lapaxe™ Free-Bird P-90
- Tuning: Standard
- Length: 62 cm
- Scale Length: 56 cm
- Weight: +/- 1850 grams
- Nut Width: 4 cm
- Body: One-piece Mahogany
- Neck: Quarter sawn Mahogany or Maple
- Hardware: Solid Bell Brass in variations: Brass, Chrome, Black Chromed
Pickups: P-90s (Alnico or Ceramic).
Volume and tone control fitted with bell brass knobs.
250K-A brass potentiometers.
2 on and off mini toggle switches for each pickup.
Lapaxe™ EX-Jazz
Standard Tuning
Total Length - 62cm
Scale Length - 56cm
Weight +/- 1600 grams
Body: Solid one-piece Mahogany with neck-through construction.
Most EX-Jazz models feature an exotic top.
Fretboards: Rosewood/Hard Maple/Makassar/Jet-Black Makassar/Amara Makassar/Borneo Rosewood/Pale Moon Ebony/
Neck: Reinforced with two carbon steel rods and a two-way action truss rod
1 Alnico Mini-Humbucker versions: Gold, Black & Chrome
Volume and Tone control
500K-A: Potentiometer with a brass shaft
End-pin jack strap retainer versions: Gold, Black & Chrome
Jim Dunlop strap-lock system in the front
Bell Brass Lapaxe™ Bridge and Nut-lock in Brass / Black Chrome / Chrome
Lapaxe™ EXMH
Standard Tuning
Total Length - 62cm
Scale Length - 56cm
Weight +/- 1700 grams
Body: Solid one-piece Mahogany with neck-through construction
Fretboard: Rosewood or Hard Maple
Neck: Reinforced with two carbon steel rods and a two-way action truss rod
2 Alnico Mini-Humbucker versions: Gold, Black & Chrome
Volume and Tone control
3 way Toggle switch
500K-A: Potentiometers with a brass shaft
End-pin jack strap retainer versions: Gold, Black & Chrome
Jim Dunlop strap-lock system in the front
Bell Brass Lapaxe™ Bridge and Nut-lock in Brass / Black Chrome / Chrome
Lapaxe™ Telecaster
Standard Tuning
Total Length - 62cm
Scale Length - 56cm
Weight +/- 1850 grams
Body: Solid one-piece Mahogany with a bolt-on neck
Fretboard: Rosewood or Hard Maple
Neck: Reinforced with two carbon steel rods and a two-way action truss rod
Single-coil Vintage Tele pickup with a double-rail humbucker in the bridge ground plate
3 way Toggle switch
500K-A: Potentiometers with a brass shaft
End-pin jack strap retainer versions: Gold, Black & Chrome
Standard strap retainer
Bell Brass Lapaxe™ Bridge and Nut-lock in Brass / Black Chrome / Chrome
Lipaxe by Lapaxe™ Guitars
Standard Tuning
Total Length - 62cm
Scale Length - 56cm
Weight +/- 1850 grams
Body: Solid one-piece Mahogany with a bolt-on neck
Fretboard: Rosewood or Hard Maple
Neck: Reinforced with two carbon steel rods and a two-way action truss rod
Single-coil Vintage Tele pickup with a double-rail humbucker in the bridge ground plate
3 way Toggle switch
500K-A: Potentiometers with a brass shaft
End-pin jack strap retainer versions: Gold, Black & Chrome
Standard strap retainer
Bell Brass Lapaxe™ Bridge and Nut-lock in Brass / Black Chrome / Chrome

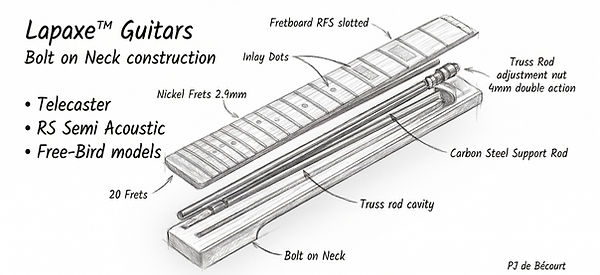

Lapaxe™ Necks Construction and Stability
Core Construction & Stability
Lapaxe™ employs two distinct neck attachment methods, paired with internal reinforcement to combat environmental shifts
-
-
Bolt-on: Utilized for Tele, Free-Bird, and Semi-Acoustic models. Neck angles are CNC-machined directly into the neck pocket for precision.
-
Neck-through: Utilized for EXMH, EX-Jazz, Lipstick, Deluxe Series, and Acoustic models. Angles are CNC-set on the neck surface beneath the fretboard. These models are all built from a single piece of Mahogany.
-
-
Internal Reinforcement: A two-way action truss rod flanked by two carbon steel rods. This triple-rod configuration ensures maximum resistance to bowing and warping.
-
Wood Cut : Bolt-on necks feature quarter-sawn timber, providing the strongest grain and highest natural resistance to bow and warping.
The RFS (Radius Fretslotting) Advantage
Your proprietary RFS Technology is a significant differentiator. By deviating from traditional through-slotted fretboards, you maintain more of the wood's natural "spine."
-
Design Logic: "Don't cut more wood than necessary."
-
The Spec: Fretslots are not cut edge-to-edge; 1.5mm of wood is left intact on each side.
-
The Benefit: This "hidden" fret tang approach significantly reduces the chance of neck warping and provides a smoother feel along the edges of the fretboard.
Fretboard & Playability Specs
The geometry and hardware are standardized across the line to ensure a consistent Lapaxe™ feel.
